Modular Industrial IoT Solution

OEE Monitoring
Terminal

A plug-and-play edge intelligence platform for factory machines. Expandable sensor modules, clamp-mount installation, and real-time OEE data — all in one compact industrial device.

Explore Configurations How It Works
6+
Sensor Modules
<5 min
Installation Time
ESP32
Edge Intelligence

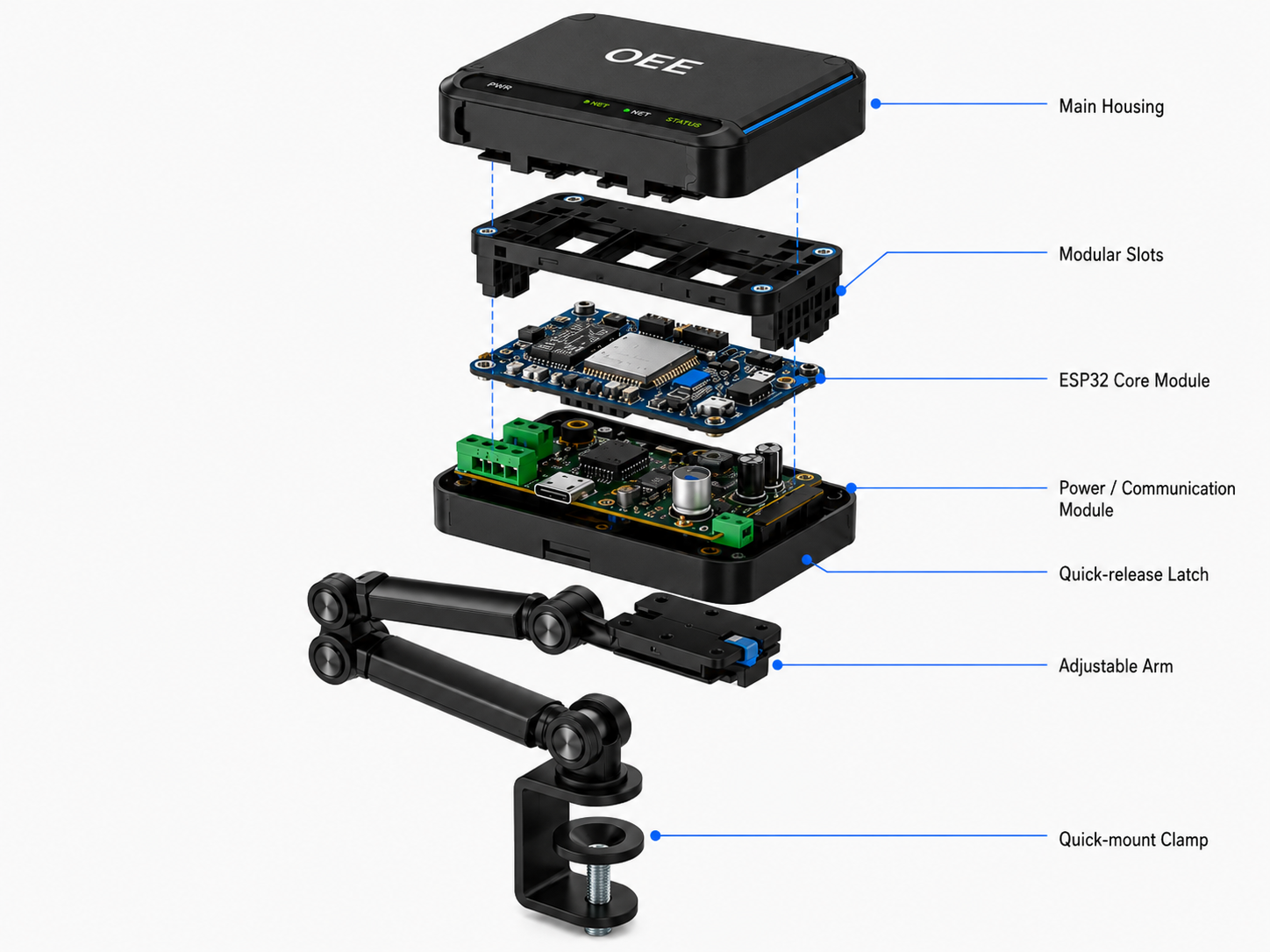

OEE Monitoring Terminal — Exploded View showing modular components
⚡
Edge Processing On-device intelligence
🔌
Plug & Play No tools required
Core Capabilities

Built for the Factory Floor

Engineered for harsh industrial environments — robust, flexible, and ready to deploy without downtime.

🧩

Modular Design

Expandable sensor slots on both sides of the terminal. Add or swap modules without opening the device — true plug-and-play flexibility.

🔧

Quick Installation

Clamp-mount to any machine surface in under 5 minutes. The adjustable arm positions the terminal at any angle without drilling.

🧠

Edge Intelligence

ESP32-powered on-device processing means local data collection, alarm logic, and communication — even without cloud connectivity.

📡

Wired & Wireless

Wide-voltage industrial power input with support for both wired Ethernet and wireless Wi-Fi / 4G communication protocols.

🏭

Industrial-Grade

Robust housing with IP-rated protection, wide operating temperature range, and EMI shielding for demanding factory environments.

📊

Real-Time OEE

Capture Availability, Performance, and Quality metrics directly from machine signals — no PLC integration required.

OEE Terminal exploded anatomy view
Product Anatomy

Every Component
Engineered to Last

From the reinforced housing to the precision PCB, each part is designed for continuous industrial operation.

1

Main Housing

Durable black enclosure with IP-rated sealing, housing all electronics and providing a secure anchor for sensor modules.

2

Modular Slots

Expandable on both sides — plug-and-play interface accepts any compatible sensor module without tools.

3

ESP32 Core Module

High-performance, dual-core processor with Wi-Fi & Bluetooth. Handles local data processing and protocol conversion.

4

Power / Communication Module

Wide-voltage industrial input (9–48V DC), surge protection, and multi-protocol communication support.

5

Quick-release Latch

One-click assembly and disassembly — no tools needed for maintenance or module replacement in the field.

Optional Sensor Modules

Monitor What Matters Most

Choose from our growing library of plug-in sensors. Mix and match up to two modules per terminal.

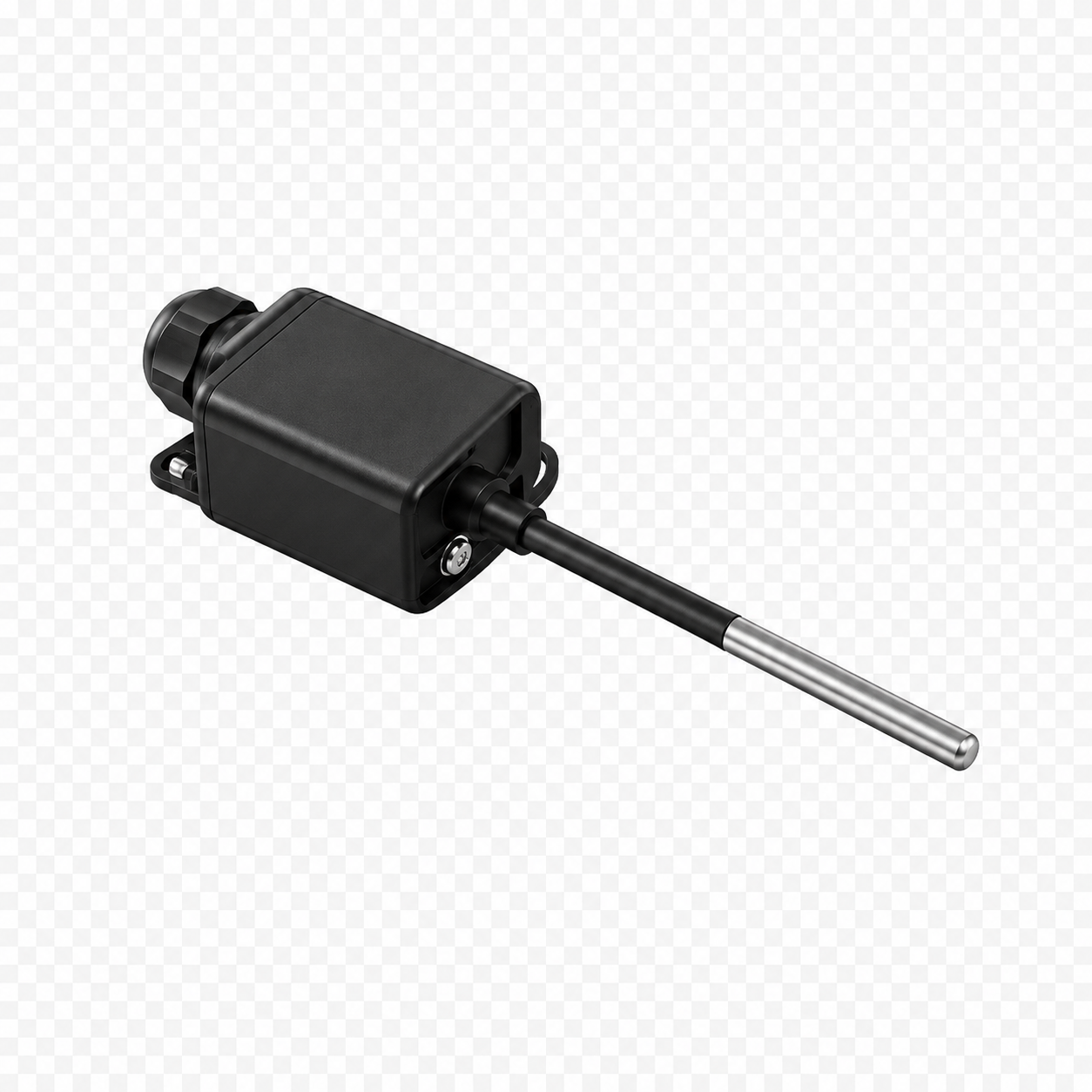

Temperature Sensor Module
Temperature Sensor

Accurate ambient or contact temperature monitoring with configurable alert thresholds.

Standard

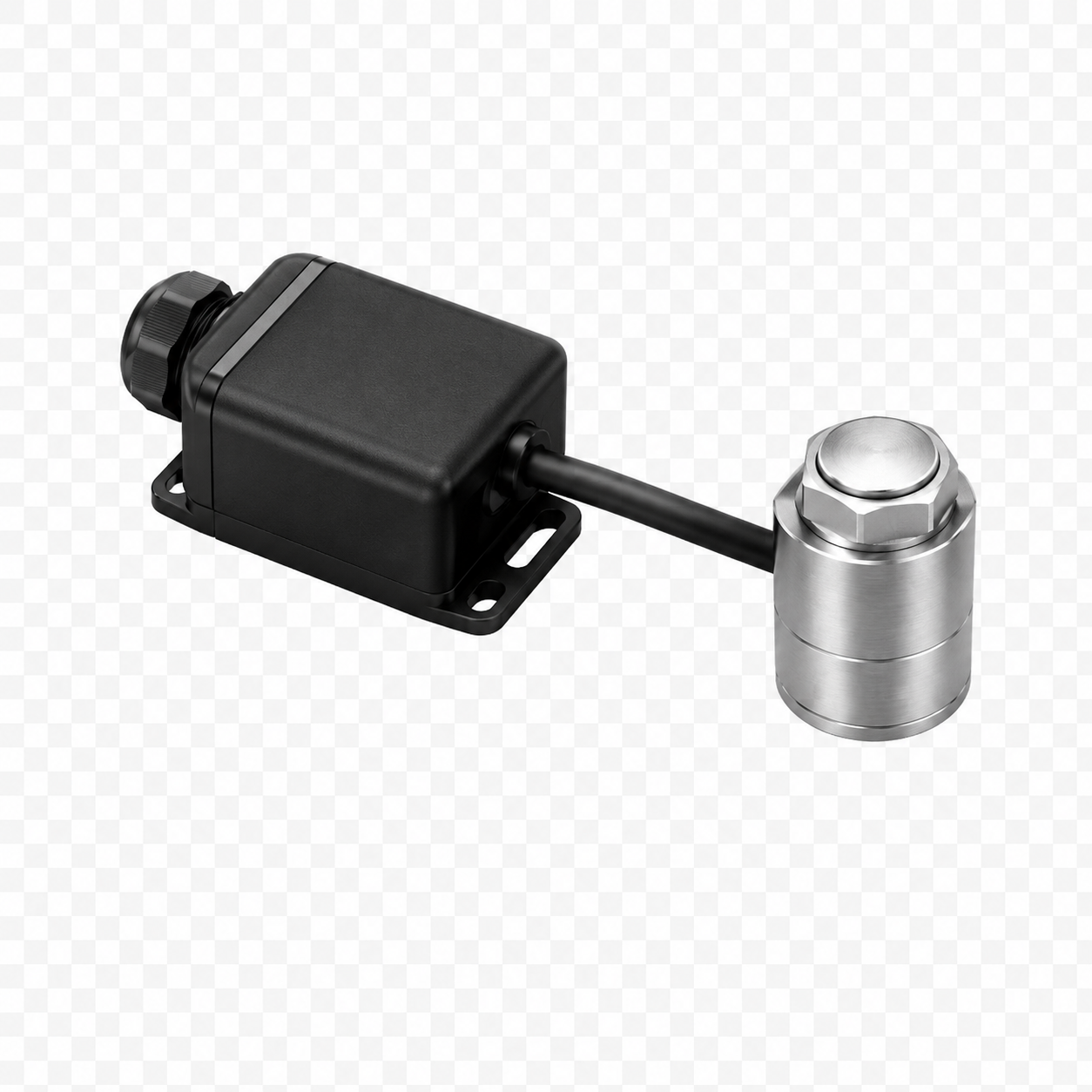

Vibration Sensor Module
Vibration Sensor

3-axis vibration monitoring for predictive maintenance and anomaly detection on rotating machinery.

Standard

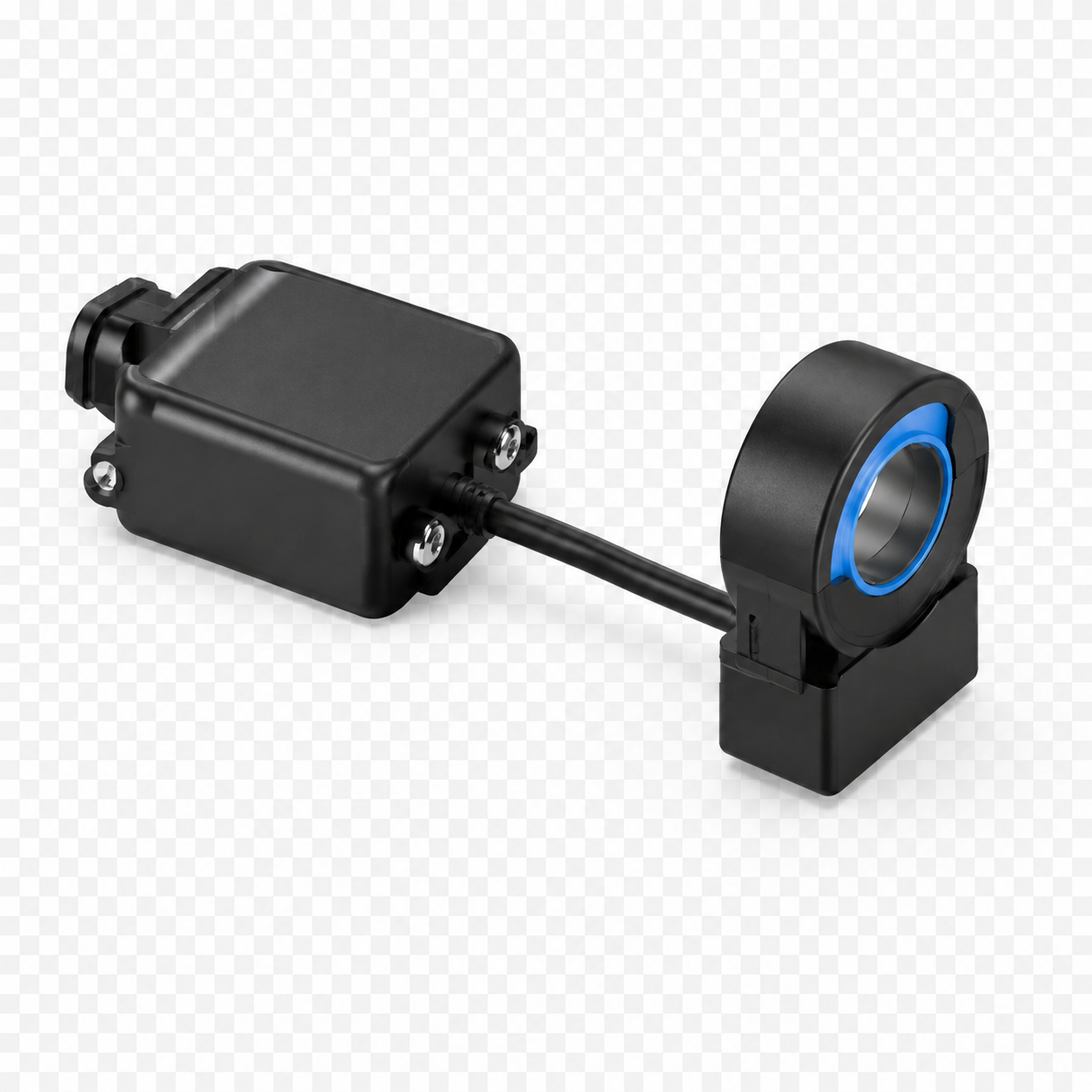

Current Sensor Module
Current Sensor

Non-invasive current clamp measures machine power draw to infer running state and detect faults.

Standard

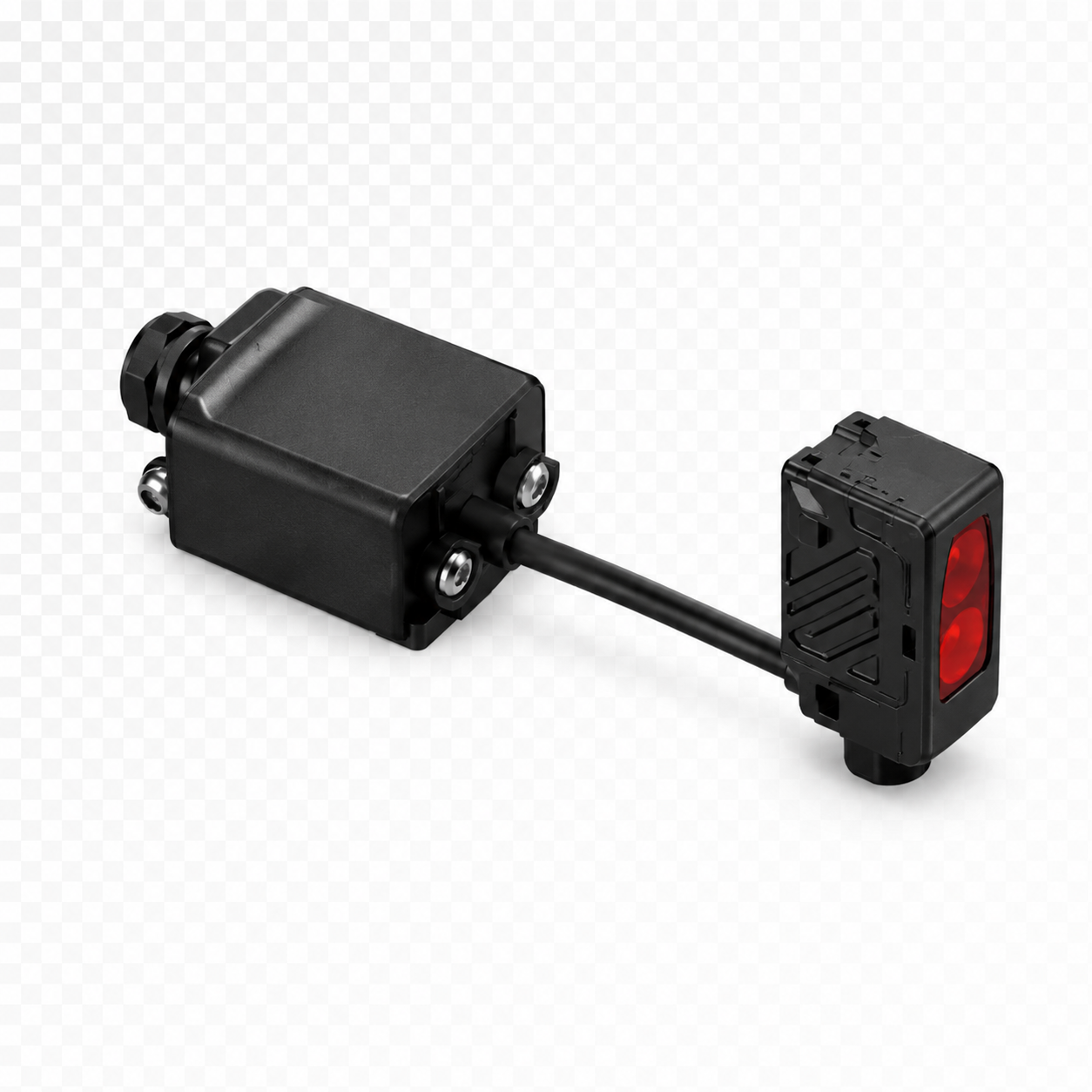

Photoelectric Sensor Module
Photoelectric Sensor

Count parts, detect object presence, and track production cycles with infrared light beam detection.

Standard

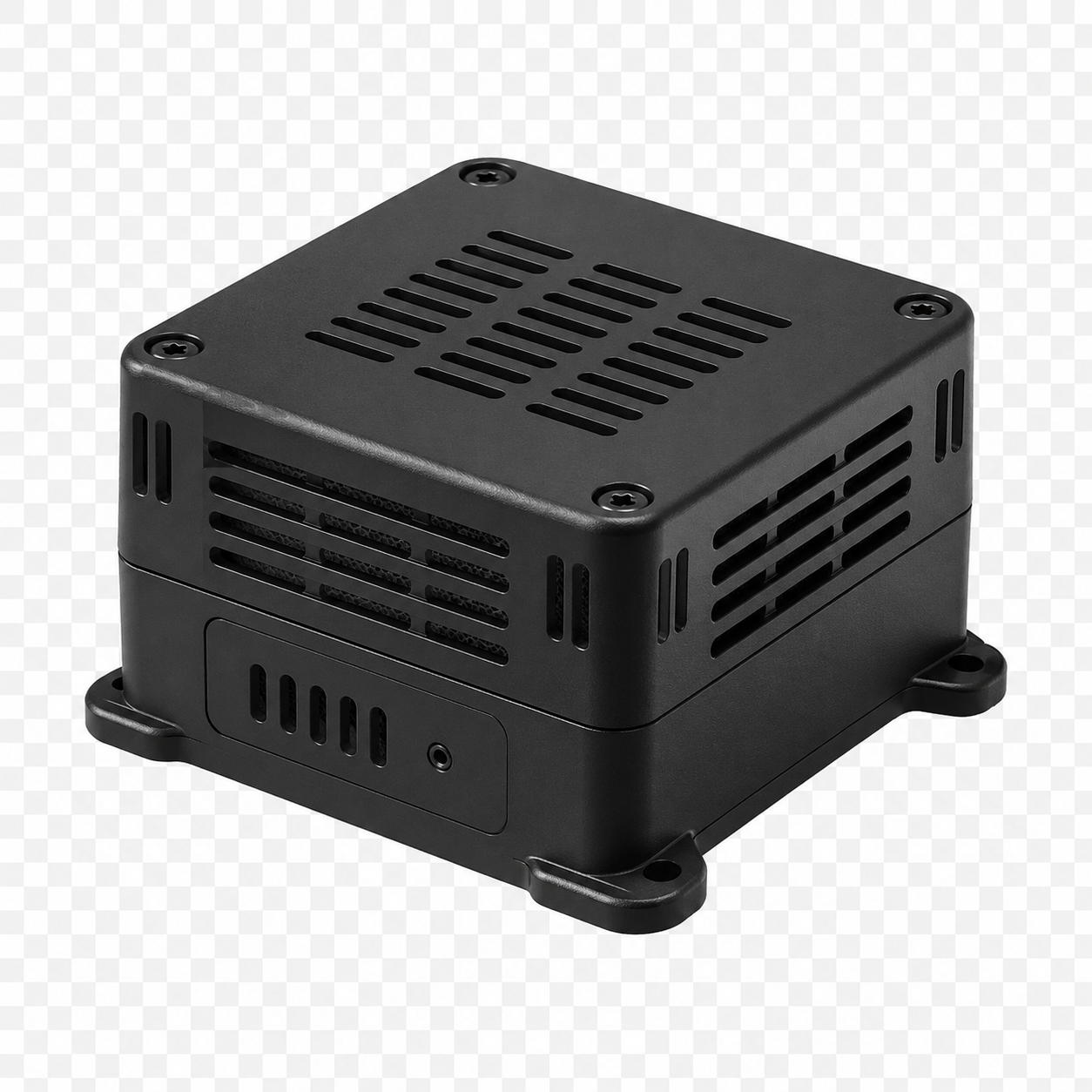

Air / Gas Quality Sensor Module
Air / Gas Quality Sensor

Monitor VOCs, CO₂, and particulate levels in paint booths, welding areas, and chemical processing zones.

Optional

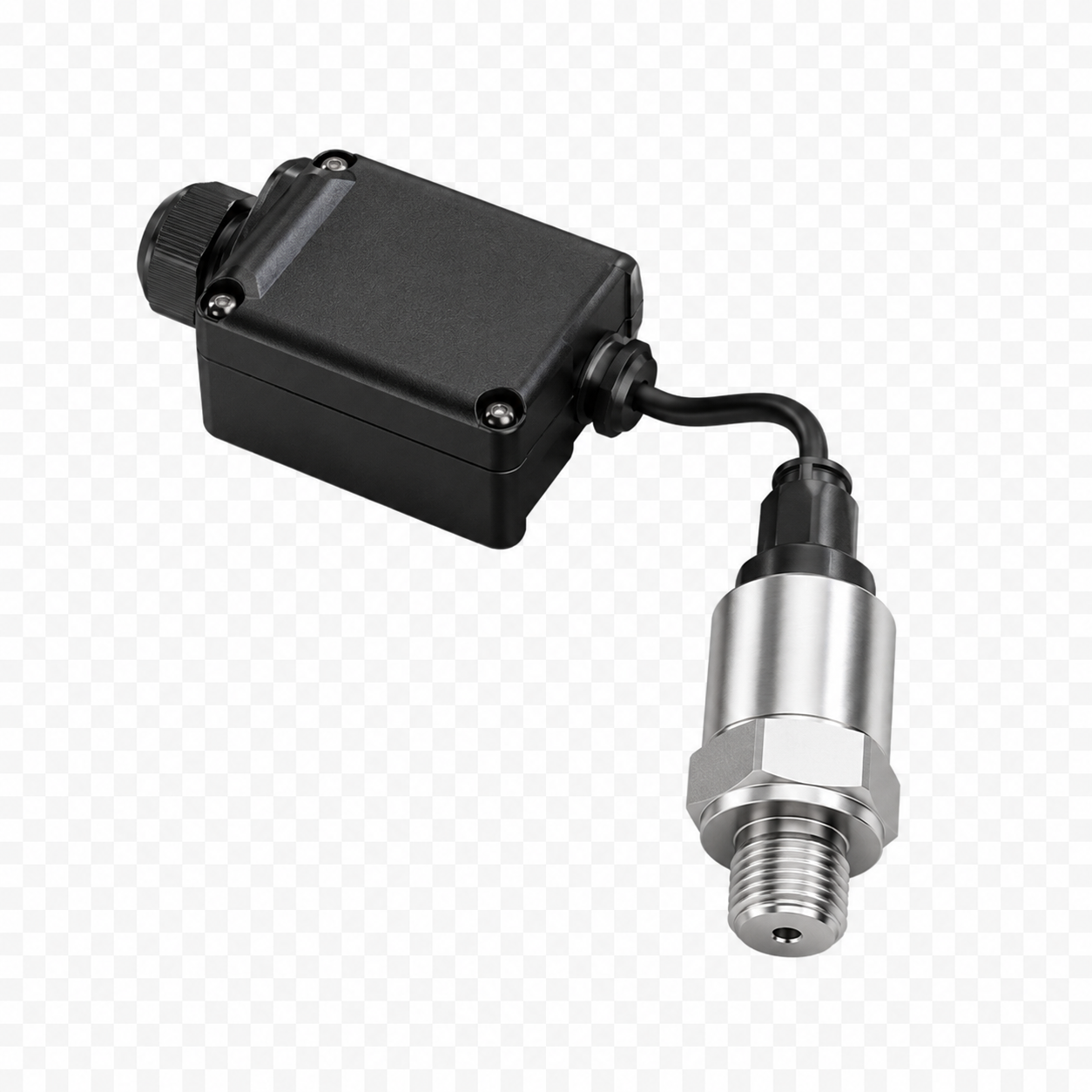

Pressure Sensor Module
Pressure Sensor

Industrial pressure sensing for pneumatic systems, hydraulic lines, and compressed-air monitoring.

Optional
Modular Configuration Examples

Install Only What You Need

Fast, flexible, and scalable — from a bare edge controller to a full multi-sensor monitoring node.

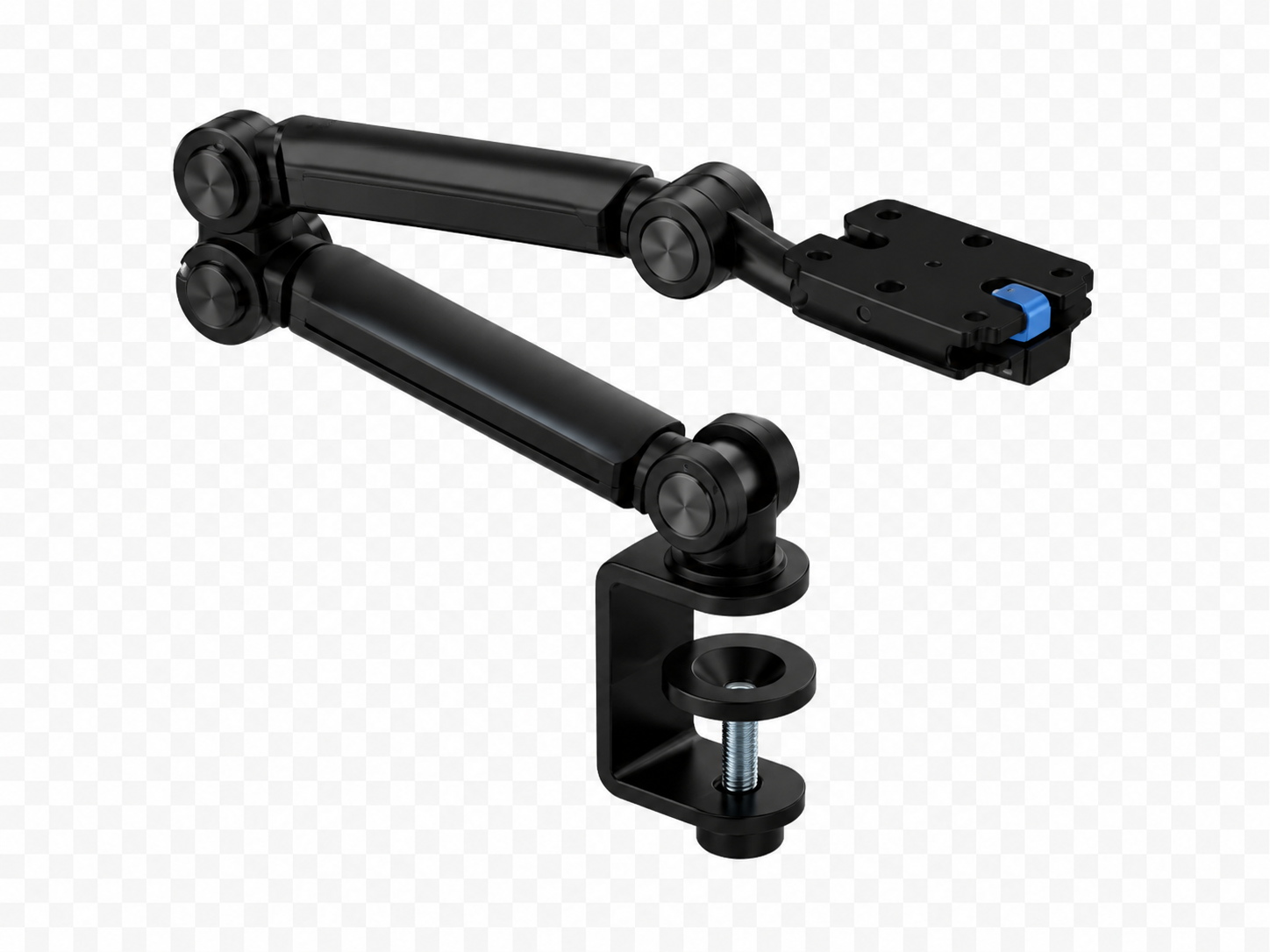

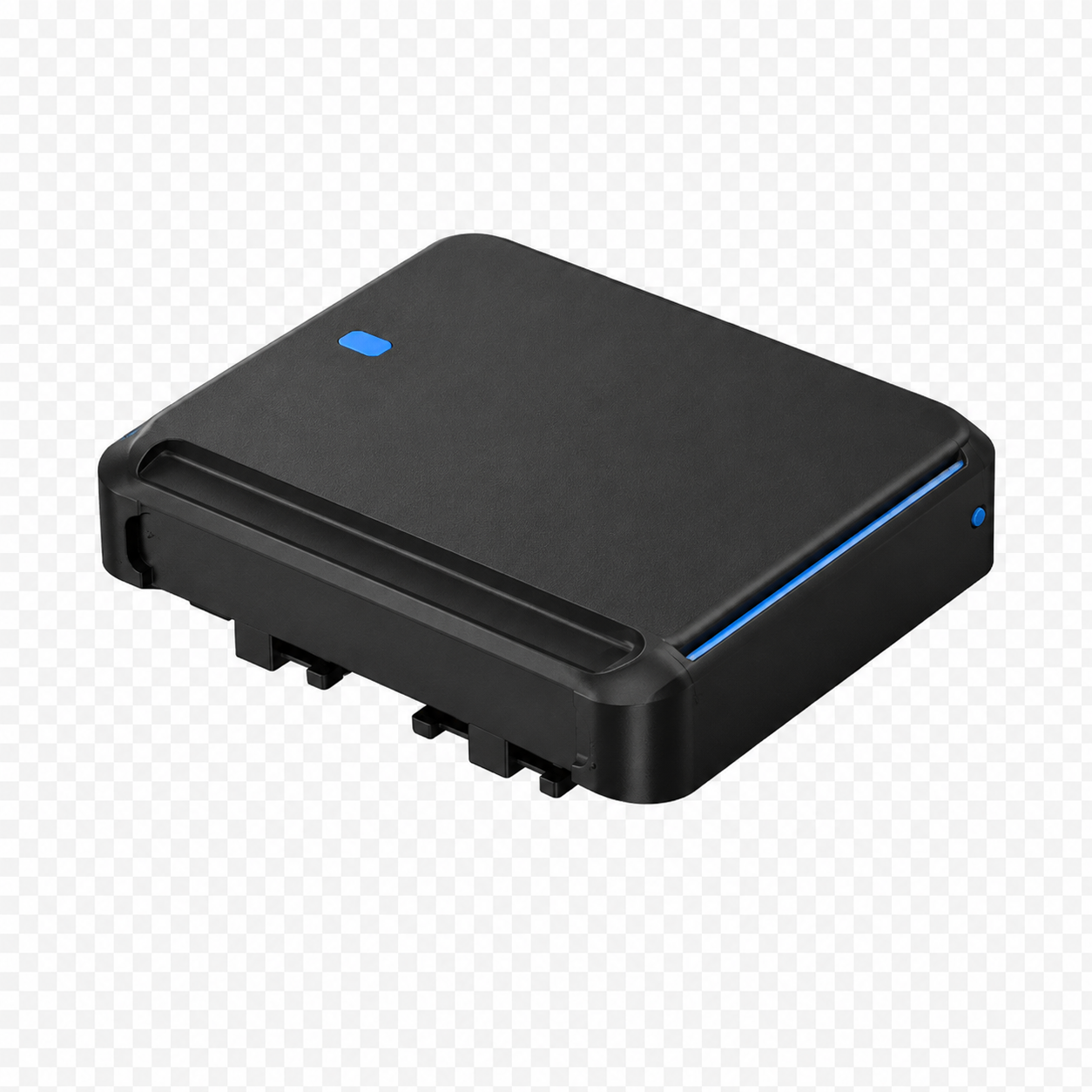

OEE Terminal Base Unit Only with adjustable arm
1
Base Unit Only

Ideal for core edge processing and communication. Collects digital I/O signals from existing machine outputs.

Edge Processing Wi-Fi / 4G
OEE Terminal with single temperature sensor module
2
Single Module Setup

Add one sensor module for focused, single-metric monitoring. Perfect for a quick OEE baseline deployment.

Base Unit + 1 Sensor
Vibration sensor Temperature sensor
3
Dual Module Setup

Monitor multiple machine conditions simultaneously in one compact device. No additional wiring runs.

Vibration Temperature
Current sensor Photoelectric sensor
4
Multi-Sensor Setup

Scale up based on OEE use case and factory needs. Full machine-state awareness from a single device.

Current Photoelectric + Optional
How It Works

Up and Running in 3 Steps

From unboxing to live data in under 15 minutes — no IT team, no installation crew required.

🧩
1

Choose Modules

Select the sensor modules that match your monitoring needs from our plug-and-play library.

🔌
2

Plug Into Side Slots

Insert modules into either side of the OEE terminal. Snap into place — no tools, no wiring.

📊
3

Mount & Start Monitoring

Clamp to any edge location and begin collecting machine data instantly. Live OEE metrics in minutes.

Select sensor modules

1. Select Modules

→
Plug into OEE terminal slots

2. Plug Into Terminal

→
Mount and start monitoring

3. Mount & Go Live

Installation & Accessories

Everything You Need in the Box

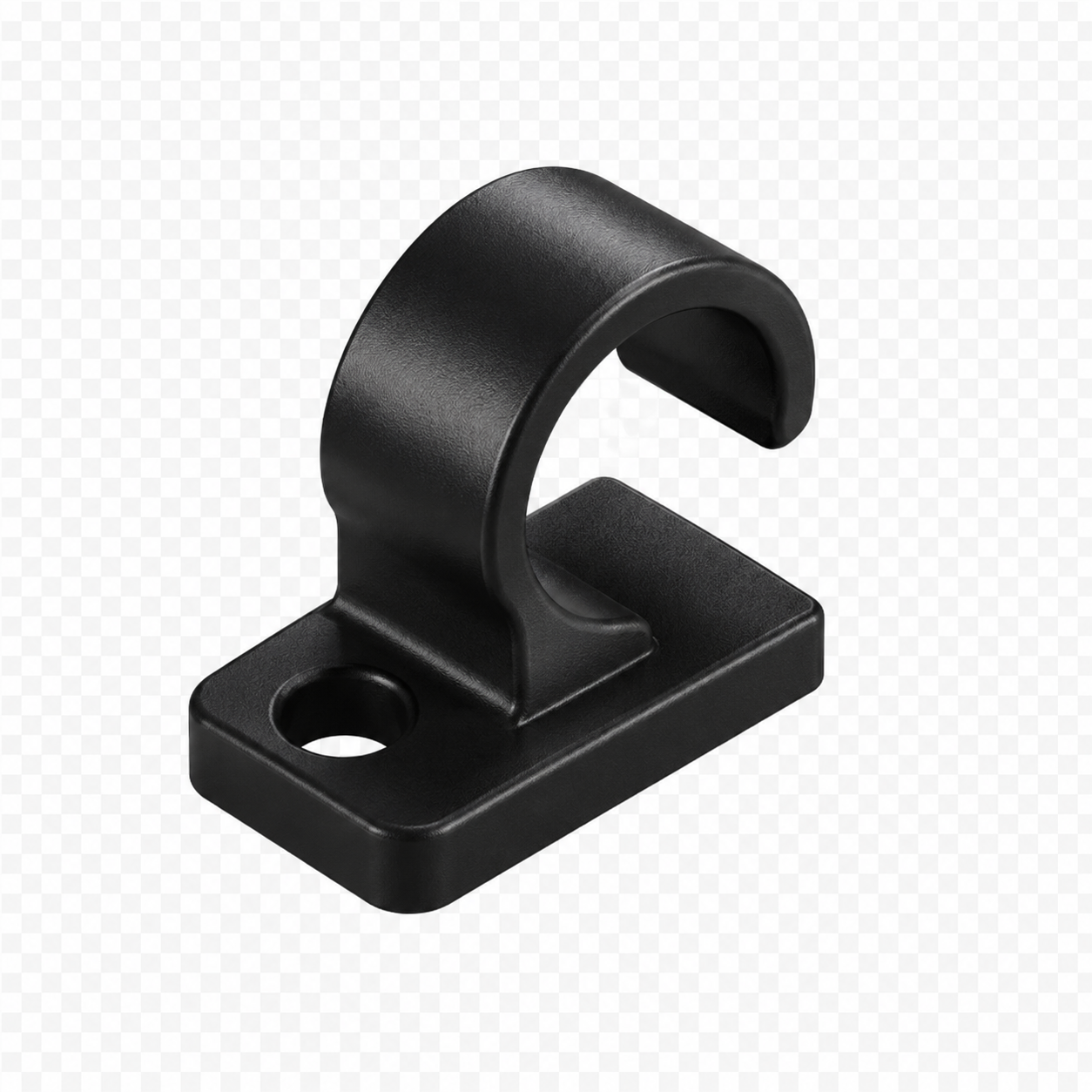

Cable Clip
Cable Clip
Route cables cleanly

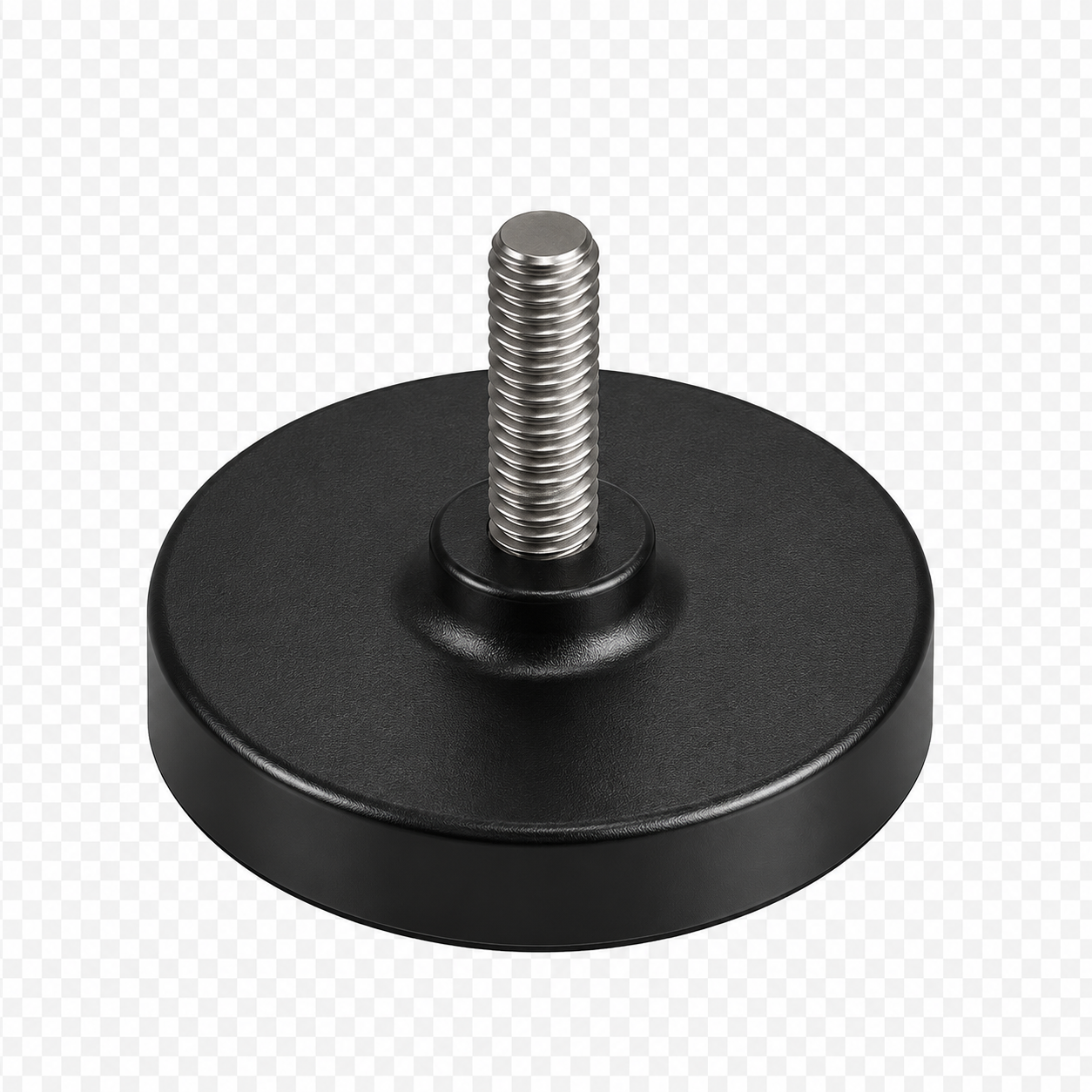

Magnetic Base
Magnetic Base
Optional, tool-free mount

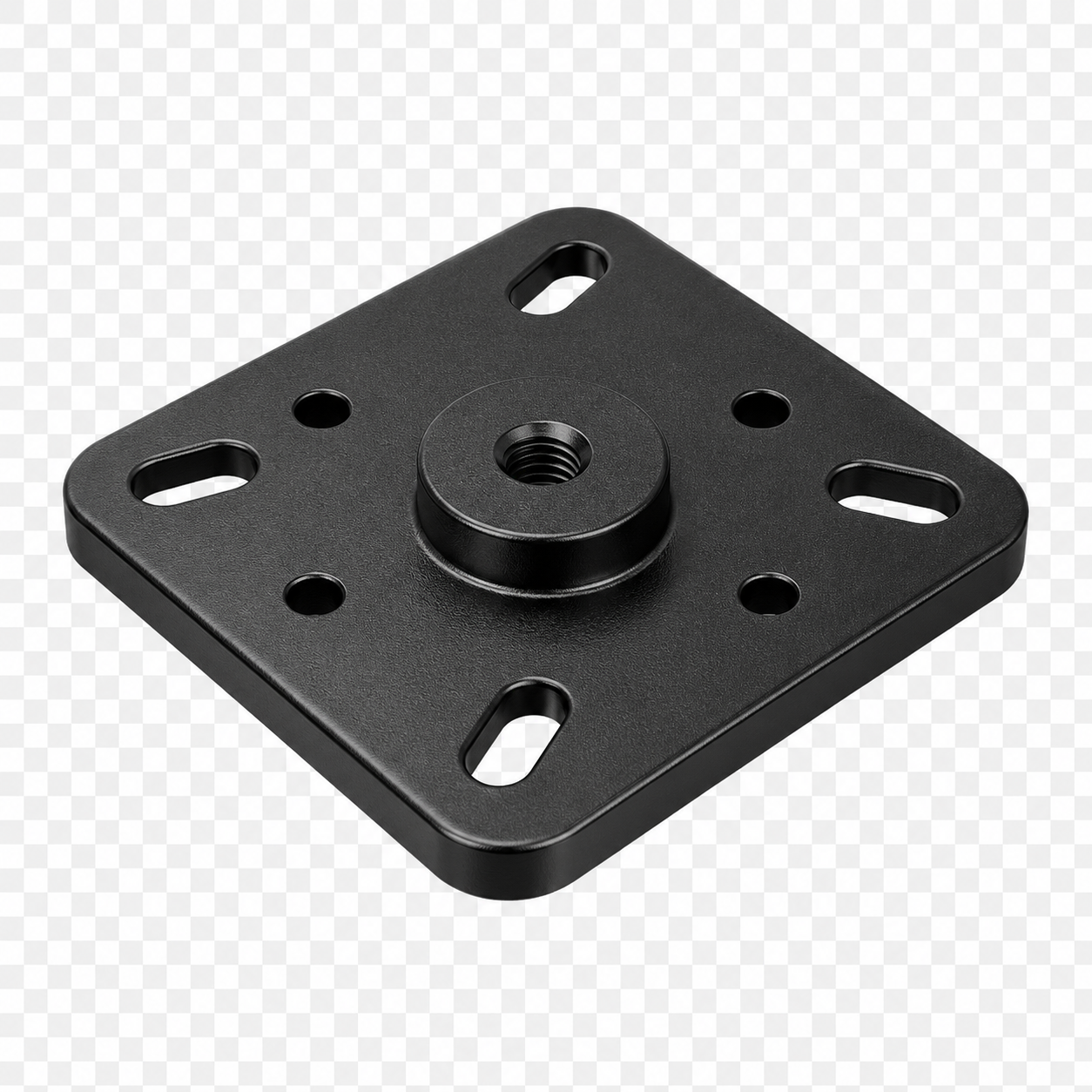

Screw Mount Base
Screw Mount Base
Optional, permanent install

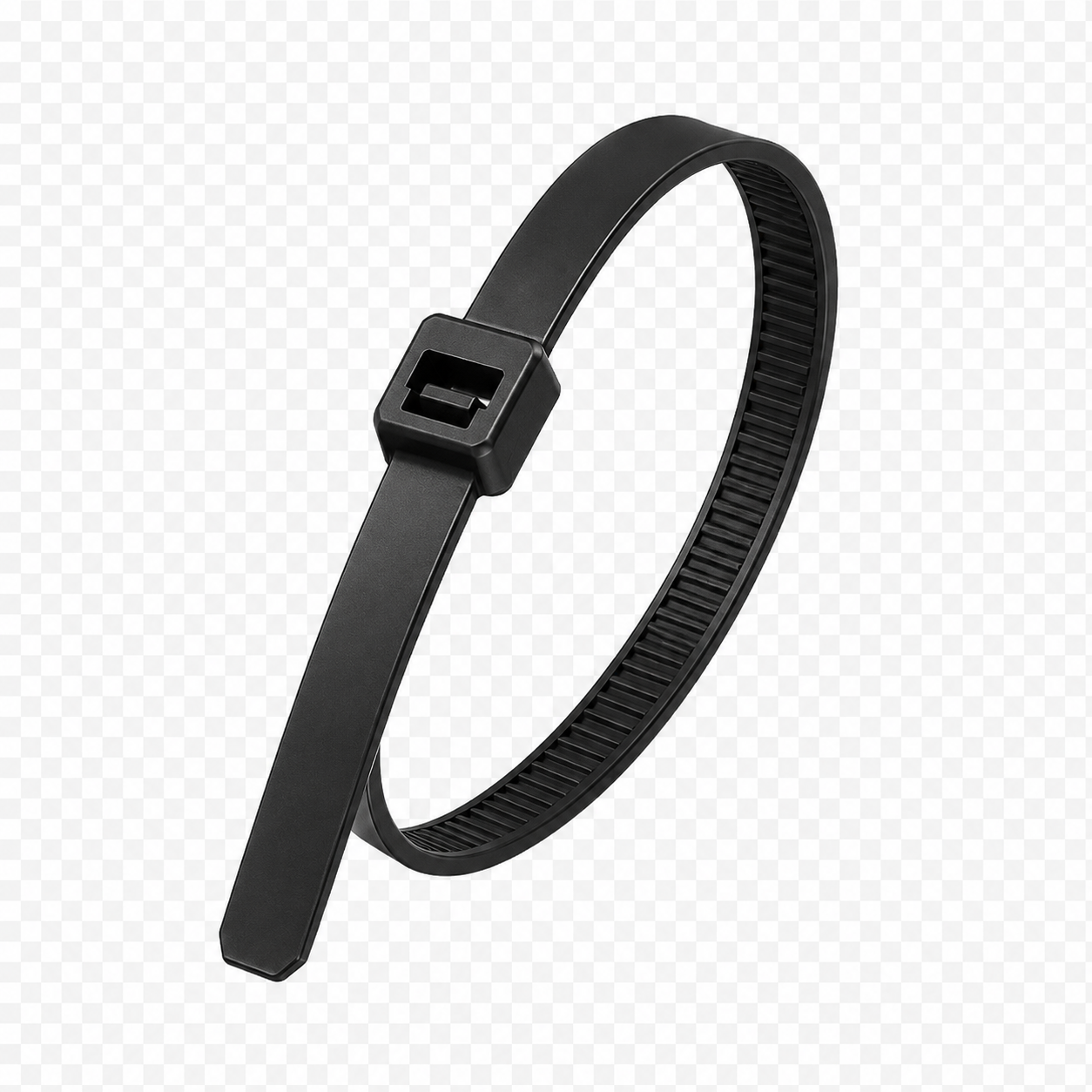

Cable Tie
Cable Tie
Secure cable bundles

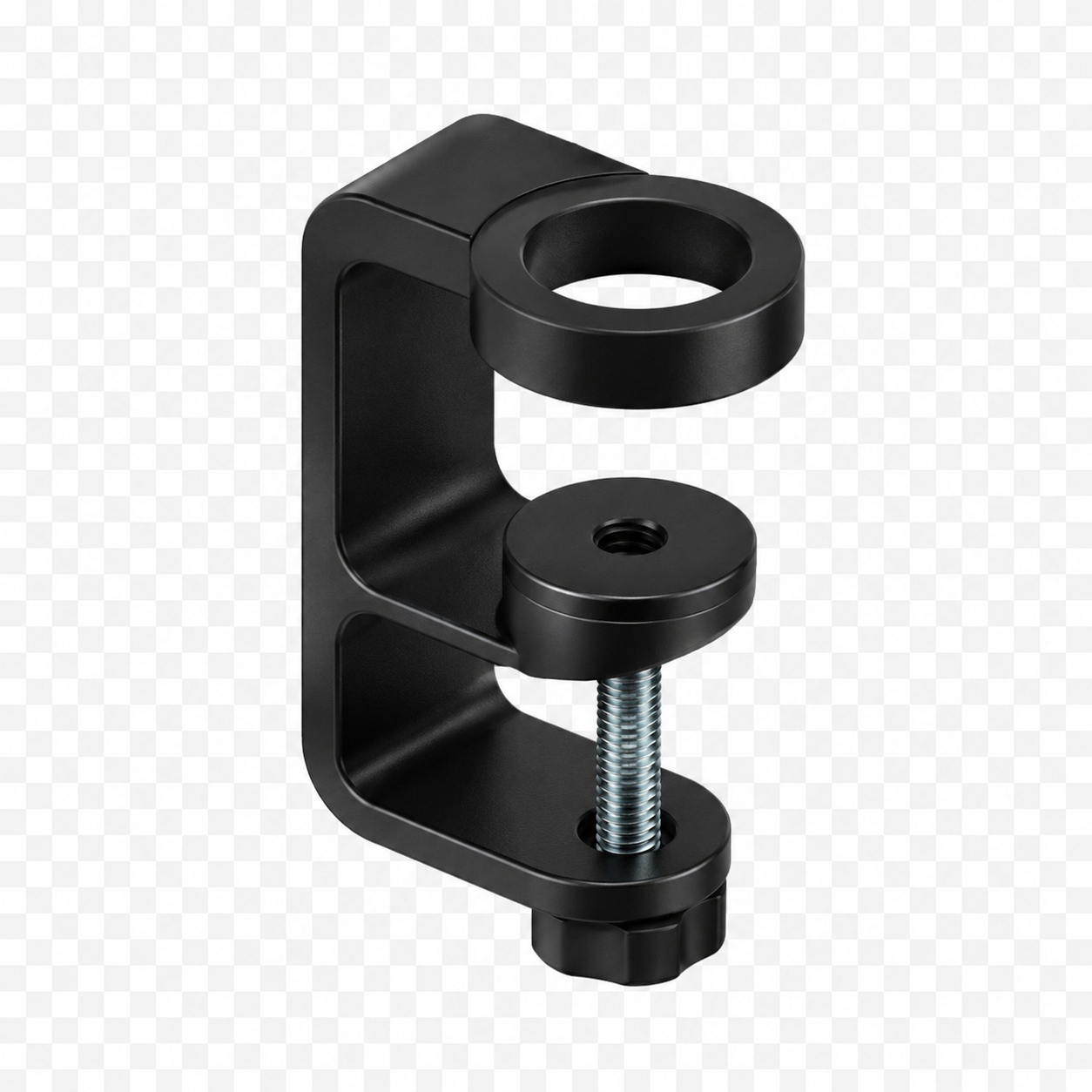

Quick-mount Clamp
Quick-mount Clamp
Fits multiple surfaces
Technical Specifications

Built for Industrial Demands

Engineered to withstand continuous operation in real-world manufacturing environments.

Core ProcessorESP32 Dual-Core (240 MHz)
ConnectivityWi-Fi 802.11 b/g/n, BLE 5.0
Wired Comm.RS-485, Modbus RTU/TCP, Ethernet
Power Input9–48V DC, wide-voltage industrial
Sensor Slots2 × side expansion slots
MountingQuick-release clamp / magnetic / screw
HousingABS + PC alloy, industrial-grade
Operating Temp.-20°C to +70°C
LED IndicatorsPower, Communication, Status
CertificationCE, RoHS
ESP32 Core Module
⚡

Wide Voltage Input

9–48V DC industrial power with surge and reverse-polarity protection built in.

🔌

Multi-Protocol Support

Modbus RTU/TCP, MQTT, HTTP, RS-485 — connects to any existing factory system.

🌡️

Extended Temperature Range

-20°C to +70°C operating range — suitable for cold storage to high-temperature foundry environments.

Ready to Deploy

Start Monitoring Your
Factory Floor Today

From single-machine pilots to full-factory rollouts — our team can help you spec the right configuration.
